    Steel Plant Heavy Duty Ladle Transport Trolley On Rails For Molten Steel Handling

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9001
    Price : $5000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    Steel Plant Heavy Duty Ladle Transport Trolley On Rails For Molten Steel Handling

    Steel Plant Heavy Duty Ladle Transport Trolley On Rails For Molten Steel Handling


    Introduction - Ladle Transport Trolley On Rails


    KPX series heavy duty ladle transport trolley on rails for molten steel handling powered by the storage battery. It can run on straight rails or curved rails according to user actual use demand.

    Compare wtih KPJ, KPD series ,it is of the greater flexibility in security and mobility. The running distance is not limited and without demand of rail isolation, so the construction is convenient and the cost is low.

    Steel Plant Heavy Duty Ladle Transport Trolley On Rails For Molten Steel Handling

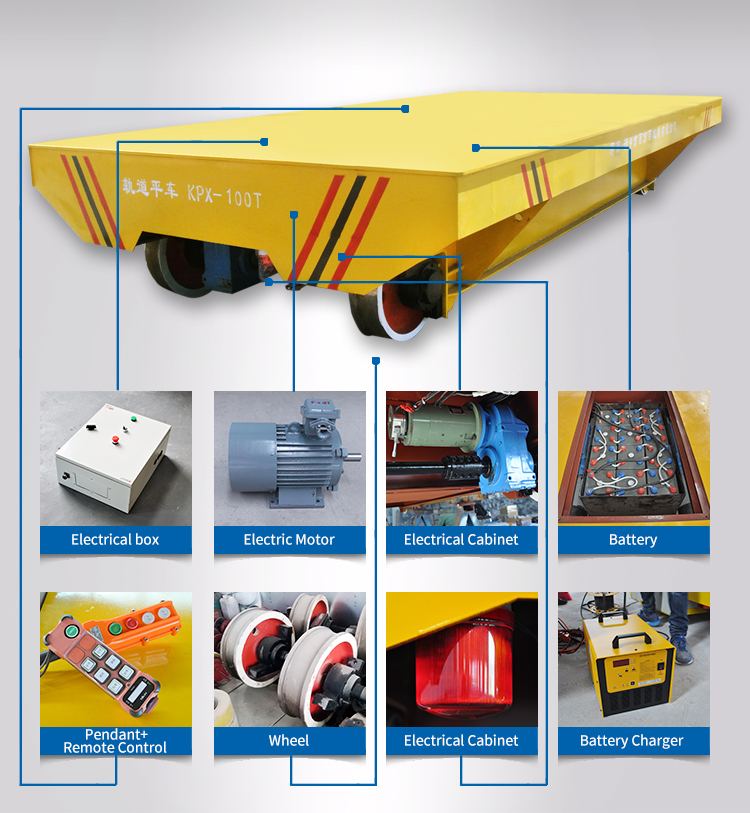

    Parts Show - Ladle Transport Trolley On Rails



    Parameter - Ladle Transport Trolley On Rails


    Rated load (T)

    10

    20

    30

    50

    100

    150

    Table size(mm)

    length

    3600

    4000

    4500

    5500

    6500

    10000

    Width

    2000

    2200

    2200

    2500

    2800

    3000

    Height

    500

    550

    600

    650

    900

    1200

    Wheel Base (mm)

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    75

    75

    Motor Power (Kw)

    1.6

    2.2

    3.5

    5

    10

    15

    Battery Capacity (Ah)

    160

    180

    250

    330

    440

    600

    Battery Voltage (V)

    48

    48

    48

    48

    72

    72

    Running speed (m/min)

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Running Time When Full Load(Hours)

    4.8

    4

    3.5

    3.3

    3.2

    3.2

    Running Distance for One Charge(Km)

    7.2

    4.8

    4.2

    4

    3.8

    3.2

    Max Wheel Load (KN)

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    4.2

    5.9

    6.8

    8

    14.5

    26.8

    Recommended Rail Model

    P18

    P24

    P38

    P43

    QU100

    QU100


    Steel Plant Heavy Duty Ladle Transport Trolley On Rails For Molten Steel Handling

    Application - Ladle Transport Trolley On Rails

    Our ladle transport trolley on rail not only can transport all kinds of ladles in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.


    Steel Plant Heavy Duty Ladle Transport Trolley On Rails For Molten Steel Handling
